100MHz–6.2GHz Detection Portable Anti-Drone System – 10KM Range & 360° Omnidirectional UAV Positioning
Product Highlights
10KM Range Anti-Drone System
100MHz-6.2GHz Detection Portable Drone Detector
360° Omnidirectional UAV Detection System
Product Overview
Advanced UAV detector and locator system with 1-3km detection range for comprehensive drone safety and security. Features passive detection with no signal transmission, 360° omnidirectional coverage, and capability to detect multiple drones simultaneously.
Technical Specifications
| Item |
Specification |
| Key Detection Frequency Bands |
900MHz / 1.4GHz / 2.4GHz / 5.2GHz / 5.8GHz |
| Detection Method |
Passive (No signal transmission) |
| Detection Distance |
Radius: 5 km, Coverage: 10 km |
| Operating Modes |
Mode 1: Aeroscope-like; Mode 2: CRPC |
| Sensitivity |
Better than -115 dBm (25kHz) |
| Directivity |
360° Omnidirectional |
| Supported Modulations |
FM, 2FSK, 4FSK, GFSK, MSK, BPSK, QPSK, 16QAM, 64QAM, OFDM, DSSS, FHSS |
| Simultaneous Detection Capability |
≥30 drones |
| Detection Modes |
Panoramic scanning, Channel scanning |
| Dynamic Range |
70 dB |
| Power Supply |
Internal battery (15 hours) or AC 220V |
| Operating Time |
24/7 continuous or 15 hours on battery |
| Dimensions |
470 * 357 * 176 mm (cover closed) |
| Weight |
≤13 kg |

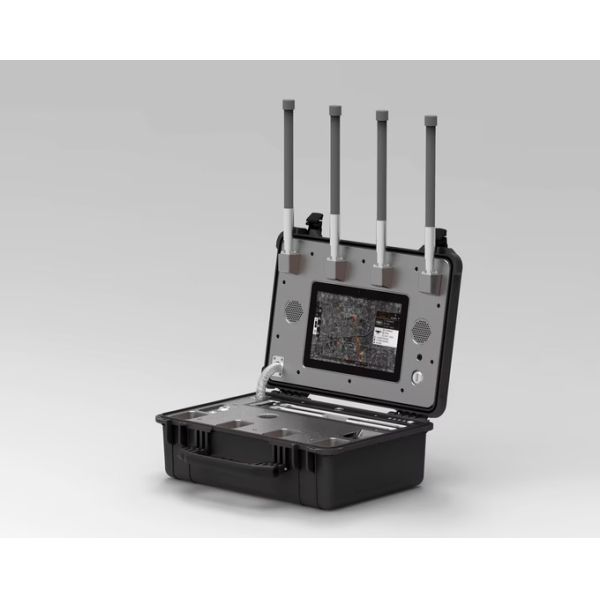

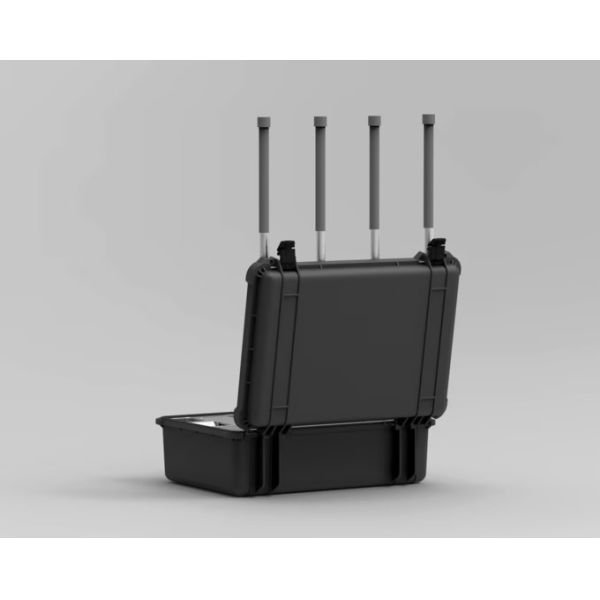

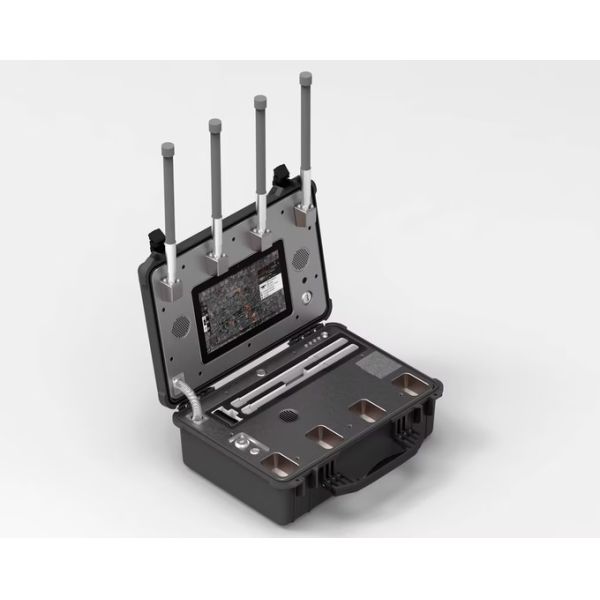

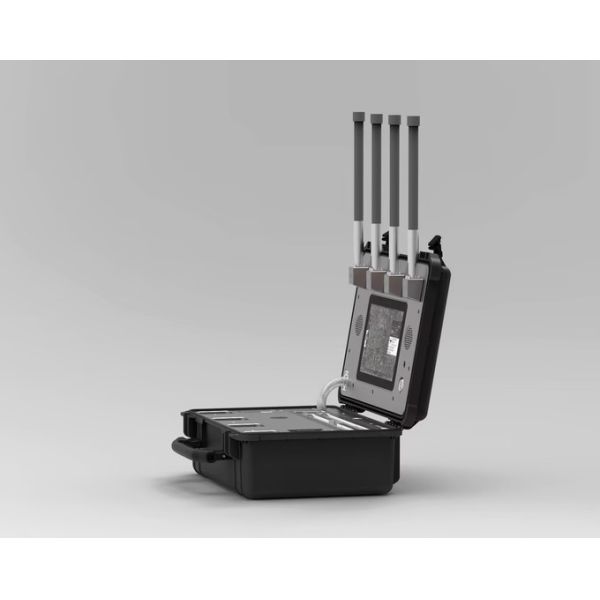

Product Images
Manufacturing Facility
Frequently Asked Questions
How long is the production lead time?
The production lead time varies depending on the product and order quantity. Generally, it takes around 7-15 days after receiving the deposit. Please contact us for more accurate information based on your order.
Can I customize the product?
Yes, power and frequency band can be customized according to your needs. Please contact us with your specific requirements.
What is your payment term?
We accept various payment methods, including T/T (Telegraphic Transfer), PayPal. Payment terms are typically 30% deposit and 70% balance before shipment.
How do you ensure product quality?
We have a strict quality control process, including raw material inspection, in-production checks, and final quality inspections before shipment.
What shipping methods are available?
We offer multiple shipping options, including sea freight, air freight, and express courier (DHL, FedEx, UPS, etc.). We will recommend the most suitable method based on your order quantity and destination.
Can I track my order?
Yes, we will provide you with a tracking number once your order is shipped. You can use this number to track your order through the carrier's website.
Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including technical assistance and warranty services. Please contact our customer service team for any issues related to your order.
